How remote visual inspection (RVI) can help pharma companies prevent contamination and maintain product-line purity requirements.
Many pharmaceutical manufacturing plants are interlaced with webs of stainless steel process pipes and vessels through which products flow. Bacterial or foreign-particle contamination in pipes and production-line equipment can cause serious health issues for consumers and shake public confidence in the industry. Strict purity and contamination control of pharmaceutical manufacturing facilities is required under various international standards, such as ASME (American Society of Mechanical Engineers), AWS (American Welding Society) and local regulatory authorities such as the U.S. Food and Drug Administration. However, the expansive pipeline systems pose unique challenges.
Preventing contamination in medication production lines is one of the main goals of good manufacturing practices (GMP). Following GMP is a prerequisite for the pharmaceutical industry to prevent poor quality or incorrect mixtures of elements from reaching the consumer. GMP requirements include implementing strict equipment maintenance and cleaning protocols supported by QC and QA inspections and audits, all backed by detailed documentation.
Remote visual inspection (RVI)—which enables inspectors to visually check inside areas that would otherwise be inaccessible—is a practical tool that can help drug manufacturers prevent contamination and maintain product-line purity to meet GMP requirements.
This article discusses how facilities can leverage RVI using videoscopes and borescopes to reduce contamination threats and offers three ways to maintain pristine pipes and welds in pharmaceutical plants using visual inspection.
Ways videoscopes can improve drug plant preventative maintenance

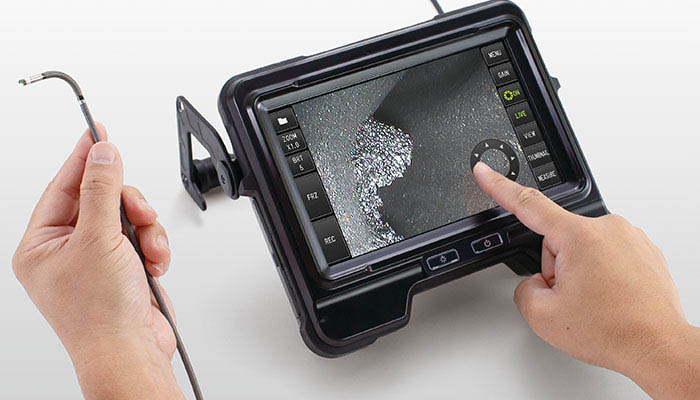

\Videoscope insertion tubes can have an internal diameter as small as 4 mm (0.16 in.) and a length up to 30 meters (98 ft), making them ideal tools to reach otherwise inaccessible locations inside process pipes, tubes, tanks, and vessels. With their outstanding image quality, videoscopes can be used to check for signs of corrosion or to monitor locations where microorganism colonies tend to grow.
Here are four ways manufacturing facilities can incorporate a videoscope or borescope into their proactive maintenance:
Documenting inspection images to comply with good manufacturing practices. Since pharmaceutical manufacturers follow GMP, the ability to visually document their inspections and easily create reports for auditing and validation is a big advantage. Modern videoscopes make this process simple and efficient.All videoscope inspection images or video footage can be documented as evidence.
Videoscope systems with well-designed inspection software enables a streamlined workflow.
The latest videoscopes provide QA/QC inspectors in pharmaceutical manufacturing facilities with numerous features to ease processing equipment verifications and record keeping, including the following:
- High image quality provided by advanced optics.
- Interchangeable light sources in white and ultra-violet options.
- Modern “inspection assist” software for efficient image data management.
- Portable and ergonomic design for inspection in confined spaces.
- Easy-to-use user interface for simple operation.
- Stereo measurement upgrades for quantitative defect assessmen
Together, these features enable robust documentation and efficient reporting.
Monitoring problem areas for residue buildup. Between production batch changes, pharmaceutical plants need to thoroughly clean and inspect the processing equipment. Videoscopes enable quality assurance inspectors to check key contact locations for residue buildup or corrosion and monitor potential microorganism growth areas.
Checking metal walls of pipes and vessels for corrosion. During periodic plant maintenance, RVI can be used to check and monitor any deterioration of processing equipment, such as corrosion or erosion.
Validating the compliance of new or repaired processing equipment. Before the initial operation of new or replacement equipment, drug production facilities can perform a baseline videoscope inspection to ensure compliance to standards and regulations for welds on pipe bends, elbows, joints and tanks.
Among the various types of equipment inspection, one of the most common applications is weld inspection. Pharmaceutical manufacturing piping systems can have thousands of welds and joints often in accessible locations. If even one of those welds is deficient, corrosion, leaks, or contamination can occur. Maintaining pristine pipe welds is a top priority, and RVI is an important tool for this task.
Ways to maintain pristine pipes and welds in pharmaceutical plants using visual inspection
Both automated and manual welds on stainless steel processing pipes can be a challenge to inspect. Methods such as ultrasonic and X-ray testing are commonly used to identify internal flaws and defects within the volume of a weld and on the parent material. However, after the welding and heat-treatment processes, inspectors need to visually examine the weld’s inner diameter (ID) and the weld root. Because of restricted access, remote visual inspection is an ideal nondestructive solution.
Videoscopes and borescopes help ensure all pipework and welds are fit-for-purpose and comply with welding codes and industry standards. Here are three ways to incorporate videoscopes into pharmaceutical process pipeline inspection to help ensure pristine pipes and welds:
Validate the welds in new equipment installation or repair work. Before initial operation of equipment or during plant expansion or repair work, QA inspectors can use RVI equipment to check all welded parts that require validation:
- Internal diameter (ID) surface finish.

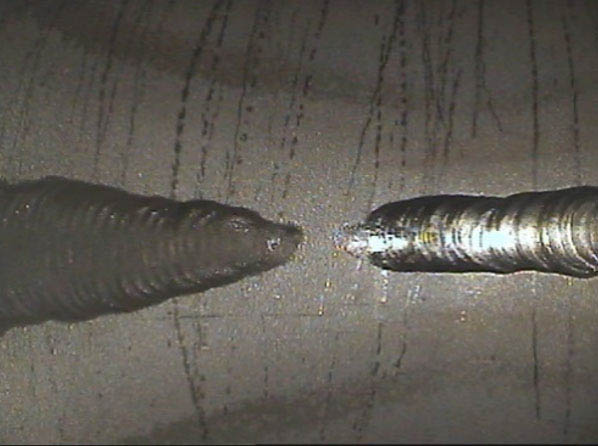

- Defects in the root section of the weld (i.e., root undercut, incomplete root penetration, burn through, etc.).
- Geometrical mismatch between welded pipe such as excess weld metal, weld overlap, etc.
Another part of the weld that is inspected using a videoscope is the heat-affected zone (HAZ). Specifically, the colors of heat-affected zones (HAZ) (as per ASME BPE 2016) and surface porosity indicate the quality of the welds. A videoscope with a high-quality image processor can balance the illumination and color representation to ensure that the images demonstrate the actual weld condition based on established discoloration acceptance criteria for welds and heat-affected zones.
Other videoscope features that enable a thorough inspection of welds in complicated process piping networks include:
- Insertion tubes of various diameters (starting at 4 mm) and lengths (up to 30 meters), offering direct viewing access to inspect weld roots and IDs of complex geometry and extensive networks of stainless steel pipes.
- Markings (numbers) on the pipes to identify the location of each weld; these numbers can be used for the corresponding recorded inspection video and images.
- An optional UV light source that can be used in combination with penetrant testing to identify surfaces defects that are invisible using white light.

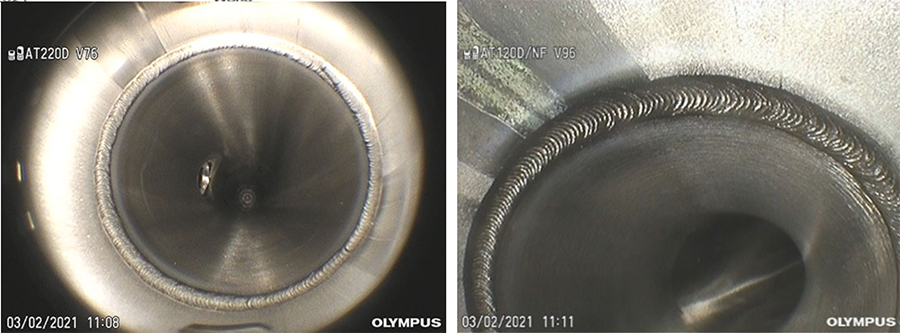

- Wide-angle view optical adaptors, such as a 220° direct view lens tip, allow a complete profile view of the weld ID, increasing the inspection efficiency and speed without compromising the probability of detection (POD). The 220° adaptor shows a complete view of the condition of both the front and backside of the weld.
Check for residue after batch-to-batch cleaning and product-to-product changeover. Welds and the surfaces inside process pipelines must not disrupt the flow of products passing through them. If the product becomes lodged, it can either spoil or contaminate products flowing through later. Welds, elbows and joints in pipes are key problem zones for residue buildup.
After maintenance personnel have cleaned the equipment between batch or product changes, RVI is recommended to check for residue to avoid cross-contamination in these inaccessible problem zones. In addition, inspectors can use the videoscope or borescope to verify the cleanliness of all welds that are in areas in contact with the flow of the product. Regional regulators, such as the FDA, typically recommend these inspections.
Ways to Ease Residue and Buildup Checks
When checking for residue around welds, elbows and joints, there are a couple videoscope/borescope features that help make the job easier:
- For a quick yet thorough inspection, using a wide-angle optical adaptor provides a complete panoramic view inside the pipe for viewing any medication remnants directly on the videoscope screen.
- Halation caused by highly reflective surfaces, such as stainless steel pipes, can impede videoscope or borescope inspection. Operators usually need to manually adjust the illumination brightness to see properly. Some videoscopes are equipped with features to resolve this problem:
- Processors that interact with the illumination system, actively adjusting the brightness level for the operator to deliver an optimized image that is clear and sharp.
- Image processing technology supports a wide dynamic range, maintaining visibility in dark areas even when the brightness is decreased to avoid halation.
- Some videoscopes offer scope tip articulation to allow fast navigation and precise control (joystick or touchscreen) to the target – through complex pipe networks, tight corners and restricted spaces.
- Other newer videoscopes offer software for user-friendly inspection data management.
Periodic inspection for corrosion and structural integrity. Pharmaceutical production facilities are not immune to corrosion and other structural integrity problems. As a result, process water that passes through the pipes is periodically monitored to check the content of impurities. The cause of this contamination can include microorganisms that nestle around pitting corrosion and proliferate in biological residue in processing equipment.
To ensure the hygienic soundness of process pipelines, it is a good practice to implement videoscopes or borescopes to inspect all welds and inaccessible locations as part of regular preventative maintenance.
Use ultraviolet light to check for microorganisms. Colonies of microorganisms are challenging to locate with white light. Borescopes or videoscopes that offer a UV light source option help detect microorganisms in processing pipes, vessels or tanks because the UV light source exposes this organic material through its fluorescenc
Checklist for videoscope or borescope inspections in pharmaceutical manufacturing plants
Here is a summary of my tips for inspecting stainless steel pipes or other process equipment:
- Choose the correct length and diameter insertion tube for your application. Videoscopes and borescopes with various lengths and diameter insertion tubes are available.
- Select the best optical tip adaptor for your application needs. I recommend a 220° “fish-eye” lens for a fast, efficient inspection with a high POD.
- Maintain proper hygiene during and after inspection—wipe down the videoscope insertion tube with isopropyl alcohol (IPA) before and after use to remove contaminants.
- When inspecting weld integrity, make sure that the white balance is correctly set before use. Observing with accurate color representation is crucial to detect discoloration in the HAZ to validate that it meets the acceptance criteria.
- Adjust the light source’s brightness to reduce halation inside shiny stainless steel pipes, tanks, and vessels. Consider videoscopes that have dynamically adjusting light sources that do that for you.
- Thoroughly inspect the welded section of pipes by rotating the insertion tube with a side-view adaptor. For large-diameter pipes, use a centering device to support placing the insertion tube at the center of the pipe.
- Thoroughly record and document your inspection. Record still images and videos of entire weld inspections as evidence for quality control validation and audits.
Remote visual inspection (RVI) is a practical tool that can help pharmaceutical manufacturers prevent contamination and maintain product-line purity to meet GMP requirements. Newer videoscopes and borescopes offer features that help perform thorough, reliable inspections, especially in hard-to-access areas such as welds, where problems often originate but can go unseen until it’s too late.
